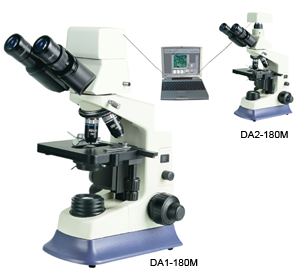

| DA1-180M |
Digital
Microscope |
| Key
Specifications/Special Features: |
| |
|
>
Specifications and Details |
- With
ingenious stand, sharp image,
comfortable operation and
high-resolution camera, making work
enjoyable. It is suitably used in clinic
and research fields.
- High quality China
microscope
|
|
>
Standard Outfit |
|
|
|
DA1-180M |
DA2-180M |
|
Viewing Head |
Compensation Free Binocular
Head at 30° , Interpupilary
Distance 55-75mm |
* |
|
|
|
Compensation Free Binocular
Head at 30° , Interpupilary
Distance 48-75mm |
|
* |
|
Camera System |
Inside Digital Camera
System,1.3M pixel CMOS Chip |
* |
|
|
|
Outside Digital Camera
System with C Mount,1.3M
pixel CMOS Chip |
|
* |
|
Eyepiece |
High Point and Wide Field
EW10/20 |
* |
* |
|
Objective |
CF High-contrast Objective
4X, 10X, 40X, 100X |
* |
* |
|
Nosepiece |
Backward Quadruple Nosepiece |
* |
* |
|
Stage |
Double Layers Mechanical
Stage 140X140mm/75X50mm |
* |
* |
|
Focusing |
Coaxial Coarse & Fine Focus
Adjustment |
* |
* |
|
Condenser |
NA1.25 Abbe Condenser with
lris Diaphragm and
Filter,Rack & pinion
Adjustment |
* |
* |
|
Illumination |
Halogen Lamp
6V/20W,Brightness Adjustable |
* |
* |
|
Image Outputs |
USB2.0 |
* |
* |
|
Software |
DN-2 Micro-image Process
Software.Protector |
* |
* |
|
|
|
>
Options
|
|
Camera System: |
>1.3M pixel CCD Camera System
>2.0 M pixel CCD Camera System
|
|
Objective: |
>Plan
Achromatic Objective4X, 10X,
20X, 40X, 60X, 100X
>Infinite Achromatic Objective
System 4X, 10X, 40X, 100X
>Infinite Plan Achromatic
Objective System4X, 10X, 20X,
40X, 100X
|
|
Nosepiece:
|
>Backward
Quintuple Nosepiece |
|
Condenser: |
>Dark
Field Condenser(Dry)NA0.9
>Dark Field
Condenser(Oil)NA1.25-1.36
|
|
Collector: |
>Kohler Illumination
|
|
Image Outputs: |
>1394PCI Card??1394 Cable
>PCMA IEEE1394 Card
|
|
| |
|
> Advanced Features
|
|
|
|
