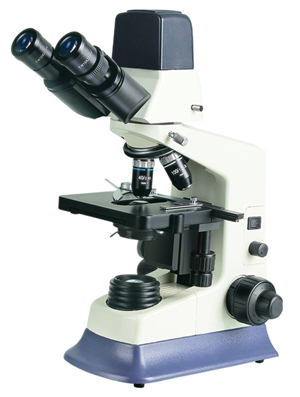

DB1-180M Digital Microscope
Key Specifications/Special Features:


> Specifications and Details
  • With 300,000-400,000 pixel and featuring economy, practicality and facility, the microscope is widely used in academic, agricultural and sanitary field.
  • High quality China Microscope
> Standard Outfit

    DB1-180M DB2-180M
Viewing Head Compensation Free Binocular Head at 30° , Interpupilary Distance 55-75mm  *  *
Camera System CMOS Chip, USB1.0 Output, 300,000 Pixel  *
  High resolution Chip, RCA, S-Vide, USB1.O Output, 400,000 pixel
Eyepiece High Point and Wide Field EW10/20  *
Objective CF High-contrast Objective 4X, 10X, 40X, 100X  *
Nosepiece Backward Quadruple Nosepiece  * *
Stage Double Layers Mechanical Stage 140X140mm/75X50mm  * *
Focusing Coaxial Coarse & Fine Focus Adjustment  * *
Condenser NA1.25 Abbe Condenser with lris Diaphragm and Filter,Rack & pinion Adjustment  * *
Illumination Halogen Lamp 6V/20W,Brightness Adjustable  *
  Halogen Lamp 12V20W, Brightness Adjustable   *
Image Outputs USB  *
  USB, RCA, S-Video   *
Software DN-2 Micro-image Process Software.Protector  * *




> Options

  Objective:
>Plan Achromatic Objective4X, 10X, 20X, 40X, 60X, 100X
>Infinite Achromatic Objective System 4X, 10X, 40X, 100X
>Infinite Plan Achromatic Objective System4X, 10X, 20X, 40X, 100X
  Nosepiece:   >Backward Quintuple Nosepiece
  Condenser:
>Dark Field Condenser(Dry)NA0.9
>Dark Field Condenser(Oil)NA1.25-1.36
  Collector:
>Kohler Illumination
