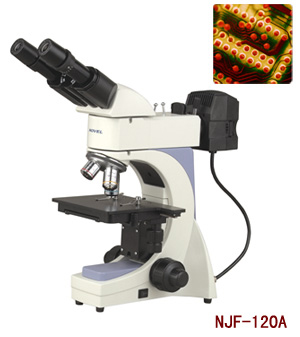

| NJF-120A |
Metallurgical
Microscope |
| Key
Specifications/Special Features: |
| |
|
>
Specifications and Details |
- China
Microscope, Providing excellent optical
feature with infinite optical systemSmall
Space Occupancy with Integral Stand Design,
Low Environment Requirement with Anti-mould
Technology
-
Metallurgical Microscope is widely used for
PCB board, LCD display and metal structure
observation and inspection. With Ingenious
stand and convenient operation, it will be
your best choice.
|
|
>
Outfit
|
|
Viewing
Head |
Binocular
Head |
*
|
|
Eyepiece |
WF10X/18 |
* |
|
|
WF10X/18
WF10X/18 W/0.1mm micrometer and
cross hair
|
~ |
|
|
WF8X/18 |
~ |
|
|
WF12.5X/15 |
~ |
|
Infinitive plan achromatic objectives |
4X/0.1/∞/-WD25.4mm |
* |
|
|
10X/0.25/∞/-WD11.0mm |
* |
|
|
20X/0.40/∞/-WD6.0mm |
~ |
|
|
40X/0.60/∞/-WD3.7mm |
* |
|
|
80X/0.90/∞/-WD0.2mm |
~ |
|
Nosepiece |
Quadruple
Nosepiece |
* |
|
Stage |
Double
layer mechanical stage, Size 150×140mm,
Movement 75×50mm |
* |
|
Focusing |
Coaxial
fine and coarse adjustment |
* |
|
Illumination |
Kohler
Illumination, Epi-illuminator with iris
aperture diaphragm and iris field
diaphragm. 220V or 110V/6V20W Halogen
Lamp, Brightness Adjustable |
* |
|
Filters |
Blue,
Green, Yellow , Ground Glass |
* |
|
PolarizationAttachment |
|
~ |
|
Specimen
Presser |
For
metallurgical specimen preparation |
~ |
"*"standard
outfit; "~" options
|
|
>
Advanced Features
 |
 |
 |
 |
|
Excellent
infinite Optical System. High Magnification
Objective with Long Working Distance (up to
3.7mm for40X Objective
|
Comfort able and Enjoyable Operation With low
and Repetitive Position Control knob. |
Triangle Structure Make the In strum Ant
Steadier and less working Space Occupation.
|
Easy, Safe and Reliable Lamp Replace-ment Device
. |
|
|
|
|
