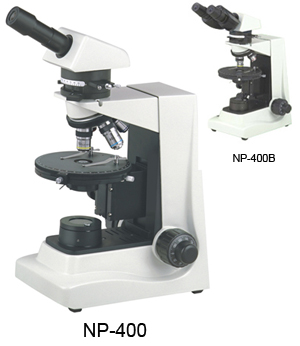

NP-400 Polarizing Microscope
Key Specifications/Special Features:


> Specifications and Details
  • China microscope, With the features of streamline and stable frame, easy operation and complete functions, polarizing microscope NP-400 is the best choice for user to observe mineral crystal figure, color and interference color and also exactly identify the optical performance of mineral and other crystal specimen.
> Outfit

     NP-400  NP-400B
 Viewing Head  Compensation Free Binocular Head at 30°,360°Rot table    *
   Monocular Head at 45,360°Rot table  *
 Eyepiece  Eyepiece WF10×/18with Scale of Crosshair and 0.1mm  *
   Eyepiece WF10×/18  *  *
 Objective  Strain free Achromatic Objective 4×, 10×, 40×, 60×  *  *
 Nosepiece  Backward Quadruple Nosepiece  *  *
 Analyzer  Rot table Analyzer with Graduation 0 - 90°  *  *
 Bertrand Lens  Bertrand Lens , Sliding in/ out of Optical path  *  *
 Optical
 Compensator
 λSlip (first class red), 1/4λSlip, Quartz Wedge  *  *
 Revolving Round
 Stage
 Diameter 145mm,360°Rotable and Graduated in 1°
 Increments, Minimum Resolution6′ when Using Venire
 Scale, Center Adjustable
 *  *
 Condenser  N.A.1.25Abbe Condenser with Iris Diaphragm & Filer  *  *
 Focusing
 Coaxial Coarse and Fine Adjustment, Range 28MM,
 Fine Division 0.002
 *  *
 Polarize  Sliding in/out of Optical Path ,Located on the Top ofCollector  *  *
 Illuminations  220V or 110V/6V20W Halogen Lamp , Brightness Adjustable  *  *

"*"standard outfit; "~" options



> Advanced Features


Monocular
Observing
is Available
Revolving Round
Stage φ145mm,
360°Rot table
and Graduated in 1°Increments,
Minimum Resolution 6′when using
Venire Scale
Polarize can be
Swung out of
optical Path.
6V20W Halogen
Lamp illumination Brightness
Adjustable
0°-90°Rot table Analyzer and when
out of optical path, Single Polarizing Observation Available is available. With Bertrand,Interferogram of Specimen can be Observed Clearly. λSlip,1/4λSlip and Quartz Wedge are Equipped
